Description

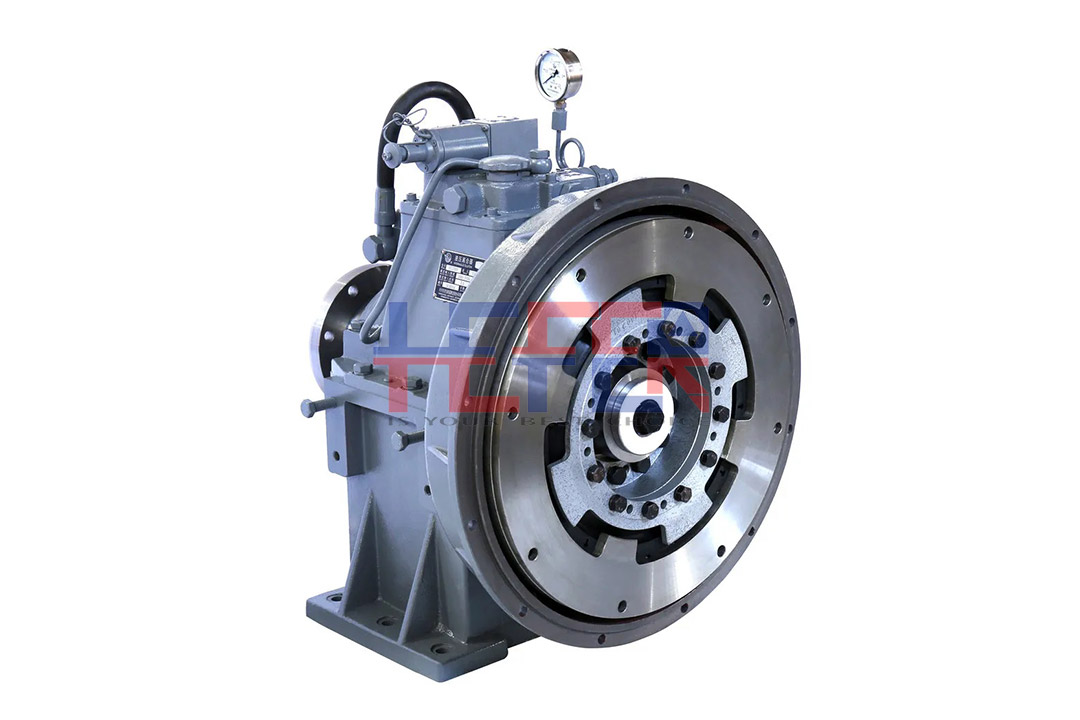

HCL-series hydraulic clutches apply structure of wet, multiple P/M friction discs, suitable for clutch condition of high speed, load and frequency. On request, mechanical or electrical control is optional. The control system works sensitively, easily realizing remote or automatic control. The product has high universalization, serialization and modularization level. The basic elements such as input coupling, clutch discs, cooler and filter are all mature parts from batch production. Spare parts are of high interchangeability and easy to purchase.
Specification
| Model | Input Speed (r/min) | Trans.Torque (KN.m) | Trans. Capacity (kW/r/min) | L×W×H (mm) |
|---|---|---|---|---|
| HCL30S | 750-1500 | 0,3 | 0,031 | 345*310*455 |
| HCL30F | 1500-2500 | |||
| HCL100S | 750-1500 | 1 | 0,105 | 570*420*535 |
| HCL100F | 1500-2500 | |||
| HCL250S | 750-1000 | 2,5 | 0,262 | 554*425*635 |
| HCL250F | 1000-2500 | |||
| HCL320S | 500-1000 | 3,2 | 0,335 | 554*425*635 |
| HCL320F | 1000-2500 | |||
| HCL600S | 750-1000 | 6 | 0,628 | 746*560*688 |
| HCL600F | 1000-1600 |
