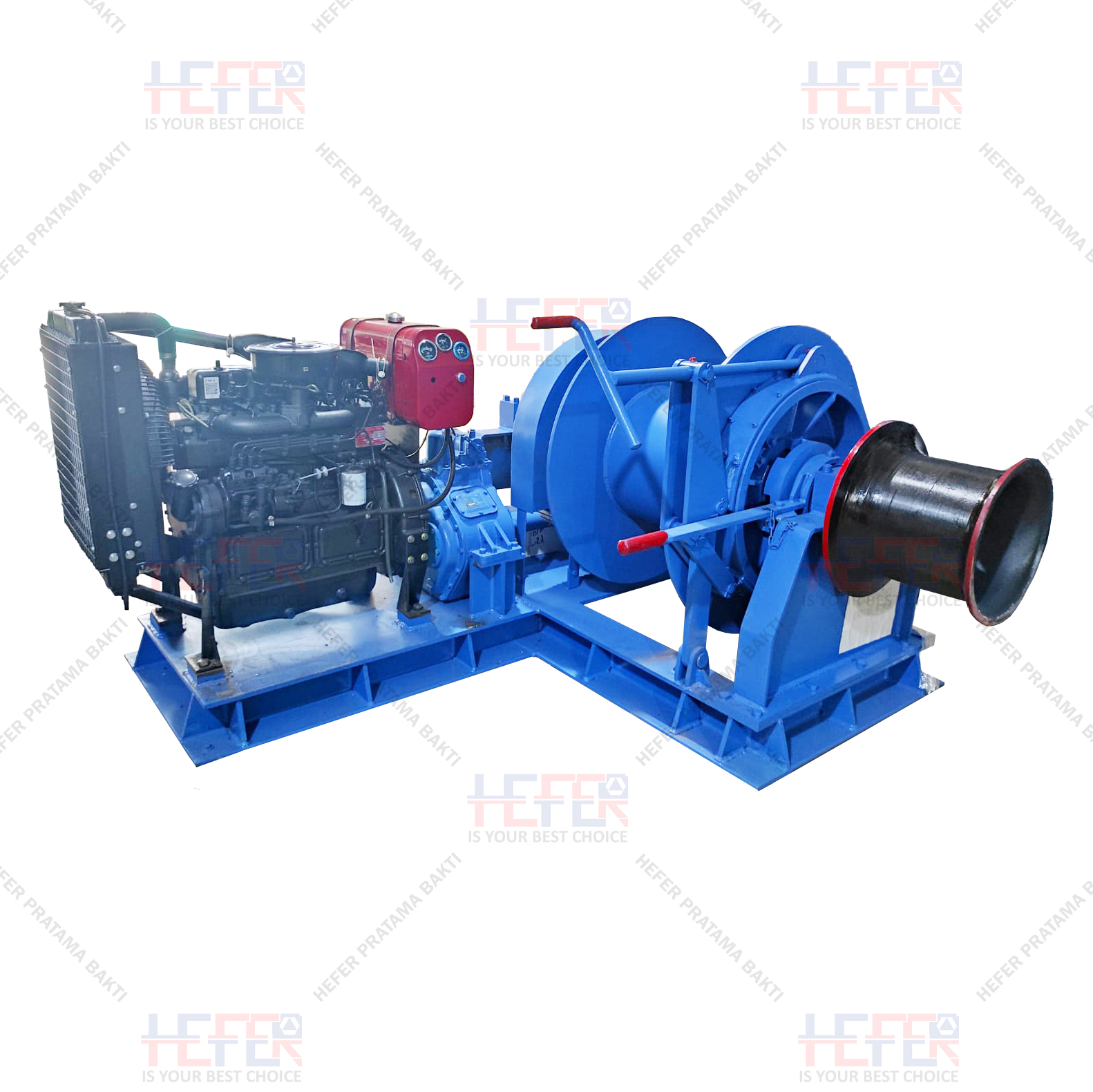

Diesel Engine Winch 50Kn


A 50 kN single drum diesel engine winch is a robust machine designed for controlled cable and rope management. With a capacity of 50 kilonewtons (kN), it can effectively handle heavy lifting and pulling tasks in various industries. The winch is powered by a reliable diesel engine, offering consistent performance even in challenging conditions.

Its single drum configuration simplifies operation and the control system allows for precise cable management, enhancing safety and efficiency during operations. Equipped with a braking system, it ensures controlled cable payout speed, reducing the risk of accidents. This winch’s adaptability and versatility make it a valuable tool for diverse applications, from lifting equipment to hauling loads, and it can provide dependable service with regular maintenance.

The advantages of a 50 kN single drum diesel engine winch include:

  • High Load Capacity : Capable of efficiently handling heavy loads, making it suitable for demanding tasks.
  • Reliability : Powered by a diesel engine, it offers dependable and consistent performance in challenging conditions.
  • Precise Control : Equipped with a control system for accurate cable management, ensuring safety and efficiency during operations.
  • Safety Features : Includes a braking system to control cable payout speed, reducing the risk of accidents.
  • Versatility : Adaptable for various applications, from construction to industrial tasks.
  • Cost-Effective : Provides a cost-effective solution for heavy-duty lifting and pulling needs.
  • Longevity: With regular maintenance, it can offer a long service life, enhancing its value for users.


Rated Pull 50 kN
Withstand Load 150 kN
Nominal Speed ≥ 9 m/min
Rope Dia 30 mm
Drum Capacity 150 m
Diesel Engine Model 4100D
30Kw &1500r/min
Marine Gearbox 40A 2.5:1
Reducer WD240-32
